Grandis 2007 xài đầu DVD Kenwood DDX-7037 cùi bắp hay kẹt đĩa mà chức năng chẳng có gì... Mình vừa nâng cấp lên đầu DVD Kenwood đời 2009 là DDX-814 thuộc dòng eXcelon của Kenwood với nhiều tính năng hấp dẩn, mới mẻ , tích hợp nhiều cách và đầy đủ thông số cài đặt âm thanh chuyên nghiệp - xứng đáng thuộc dòng High-end như các nhận xét trên Website chuyên về Car Audio.
Các tính năng nổi trội:
- Tự động điều chỉnh độ sáng tối màn hình (Reverse Tilt™ Mechanism)
- Giao diện điều khiển 3D chuyển động khá thú vị.
- Cảm ứng đa điểm. Chạm vào từng khu vực màn hình sẽ có chức năng hoạt động khác nhau.
- Tích hợp Bluetooth Handfree, Hỗ trợ A2DP truyền nhạc không dây.
- Tích hợp giải mã âm thanh 5.1;DTS; DSP With Digital Time Alignment & 13-Band EQ.
- 24-Bit Digital-To-Analog Converter
- Chơi phim nén DiVX
- Kết nối/Điều khiển iPhone;iPod, USB trực tiếp. Tìm kiếm danh bạ theo kí tự.
- Có thể thay đổi tùy chọn hình nền màn hình.
- Pre-out lên đến 5 volt - rất quan trọng khi xài Amplifier rời.
- Có thể nâng cấp Firmware.
Tham khảo thêm tại: http://www.kenwoodusa.com/Car_Entertainment/Mobile_Video_n_Navigation/Mobile_Video/DDX814
Đặc điểm chung:
General Features:
•2DIN 6.98” Wide VGA TFT Active Matrix Display with Reverse Tilt™ Mechanism
•Built-In Bluetooth by Parrot®
•Built-In 5.1 DSP With Digital Time Alignment & 13-Band EQ
•24-Bit Digital-To-Analog Converter
•DVD-Video / DiVX Playback
•iPhone/iPod Audio Video USB Direct Control With Alphabet Search
•Multi-Language GUI Menu
•Variable Color Illumination
•Selectable Wallpapers & Customizable Backgrounds
•Navigation Ready (Requires KNA-G510)
•SAT Ready (Requires CA-SR20V + Sirius SC-C1 Tuner or KCA-XM100V + XM Mini Tuner)
•HD Radio Ready
•Triple 5.0 Volt Pre-outs
•2 x USB Inputs, 2 x AV Inputs, 1 x Rear Camera Input, 1 x AV Output,
•2 x External Switches For Relay Control Outputs for garage doors, lighting, trunk, etc.
•Firmware upgradeable (go to www.kenwood.com/cs/ce for latest firmware versions)
Wide VGA Monitor
The DDX814 features a high-quality touchscreen Wide VGA monitor featuring over 1.152 million pixels. With outstanding brightness, response time and improved viewing angle, this monitor is sure to impress any viewer! Features include:
•Three Selectable Wallpapers
•Customizable Backgrounds (Up to three by USB upload)
•Multi-Language GUI Menu
Built-In Bluetooth - Powered by Parrot®
The built-in Bluetooth hands-free system enables easy, safe cellular phone communications from the car. Features include:
•High-quality noise cancelling microphone
•Register Up To 5 Bluetooth phones
•Holds up to 1000 phone numbers per registered phone
•Supports Auto Phonebook Download
•Supports A2DP Wireless Music Streaming
•Supports Voice Recognition Dialing
•Supports incoming/outgoing short-message service (SMS)
•Not all features work on all phones•Bluetooth firmware upgradeable (go to www.kenwood.com/cs/ce for latest firmware version)
iPhone/iPod Audio Video USB Direct Control
Kenwood Multimedia receivers connect seamlessly with most iPods and the new iPhone 3G featuring audio video playback via a KCA-iP301V iPod Audio Video USB Direct Cable. Features include:
•Alphabet Search
•Supports Album Art
•Supports Audio & Video Content Including Content Purchased From iTunes With DRM
•Supports Up To 12Mbps transfer speeds
•Powers and Charges Compatible iPhone/iPods
•Must update iPhone/iPod using iTunes for the latest Apple firmware
Reverse Tilt™ Mechanism
Depending on the vehicle, in-car monitors are installed in a variety of heights and angles, and this sometimes results in reduced visibility due to reflected glare from sunlight. Kenwood’s solution is the exclusive Reverse Tilt™ mechanism: in addition to the traditional tilt mechanism that allows the bottom of the monitor to be tilted forward over 5 positions, Reverse Tilt™ also allows the top of the monitor to tilt forward to eliminate reflected glare
Built-In Sirius Satellite Protocol
Kenwood Multimedia products offer more value by including a Sirius SSP interface. By simply adding a Kenwood CA-SR20V adapter cable, you can connect a Sirius SC-C1C tuner or a SC-VDOC1 car dock cradle for your portable Sirius tuner.
Thông số kỹ thuật:
# Of Pre-amplifier OutputsFront, Rear & Sub
2-Zone: Yes
AV IN 2 sets
AV OUT1 sets
Bluetooth Hands-Free Ready
Built-inDecoder AAC, WMA, MP3, WAV
Display Motorization Reverse-Tilt
Equalizer13-Band Parametric
External SwitchPower Handling
Graphic User Interface
Advanced GUI With User Selectable Interface
HD Radio Ready
Inputs2 x RCA & High-Level
iPod Video/Nano (5th/6th Gen) Optional KCA-iP300V
Maximum Power Supply Current 500mA
Multi-task Browser
Navigation Ready
Picture Size6.98" Wide
Rear Camera Input 1
Satellite Ready Sirius: CA-SR20V + Sirius SC-C1 Tuner or XM: KCA-XM100V + XM Mini Tuner
Reverse Camera Ready Optional CCD-2000
Security Code Function
Subwoofer Control
TV Tuner Ready KTC-V300N
User InterfaceTouchscreen Control
Wallpaper Customize Yes
WARRANTY2 - Year Parts & Labor
USB 2.0 Inputs 2
Digital-To-Analog Converter 24-BitDIVX
Dual Zone Source & Volume Control
High-Pass & Low-Pass Crossovers
Installer/User/Backup Memory of Audio Setup
iPod Video Direct
Number of Pixels 1,152,000Signal-to-Noise Ratio98dB
Steering Wheel Remote Control Input Requires Compatible 3rd-Party AccessorySystem Q/System Es+
Total Harmonic Distortion.01%
USB Direct Control 12Mbps Max Speed
USB Thumb Drives
Wireless RemoteYes
3 Skin Selection
File System FAT 16/32Frequency Response20Hz - 96kHz
Preout Level / Impedance5V @ 80Ω
Vài hình ảnh:

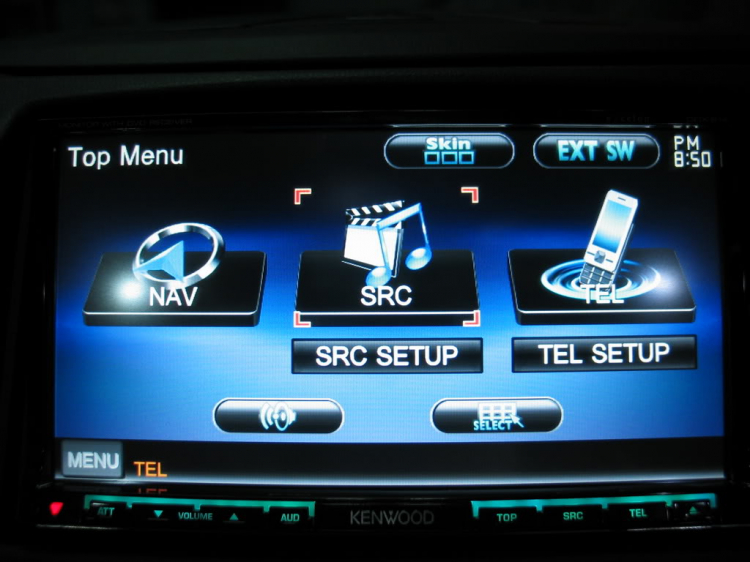

Có 3 Theme tùy chọn:

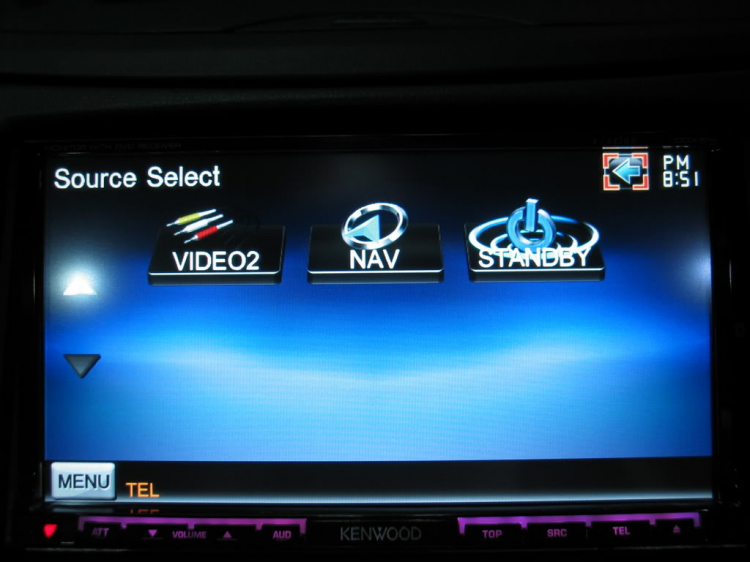

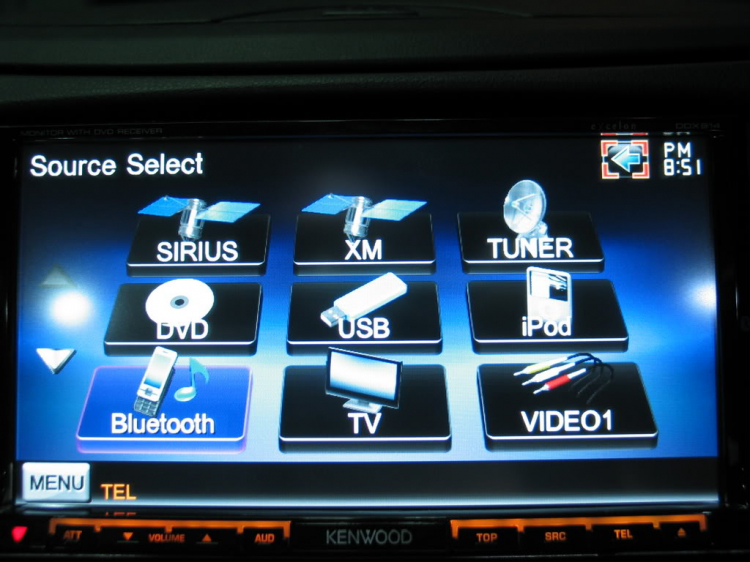

Chọn nguồn phát:

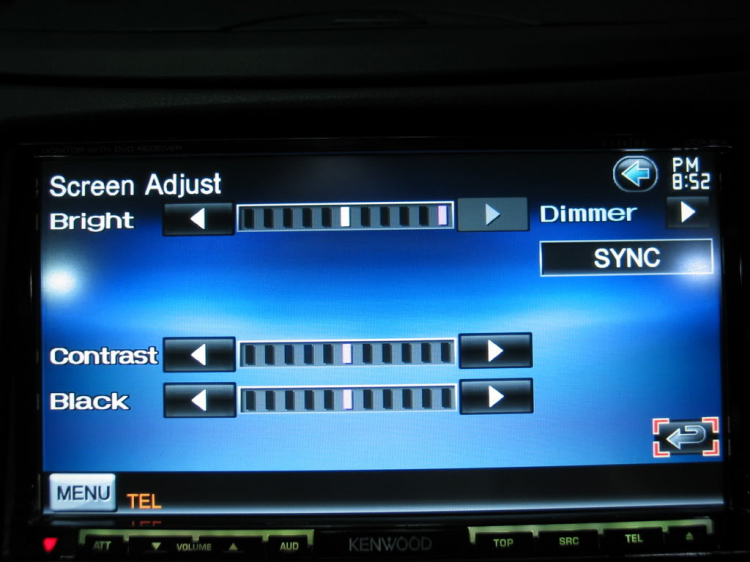

Screen Adjust: Có thể chỉnh DIM tự động phù hợp với ánh sáng trong xe

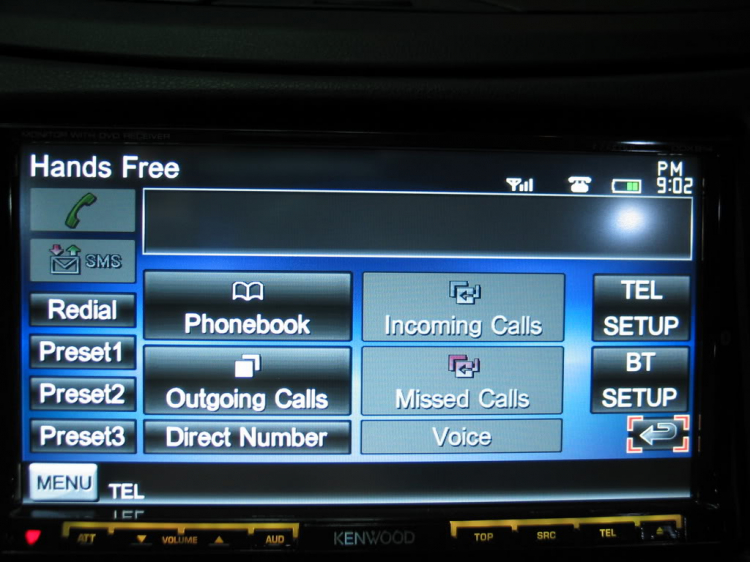

Bluetooth:

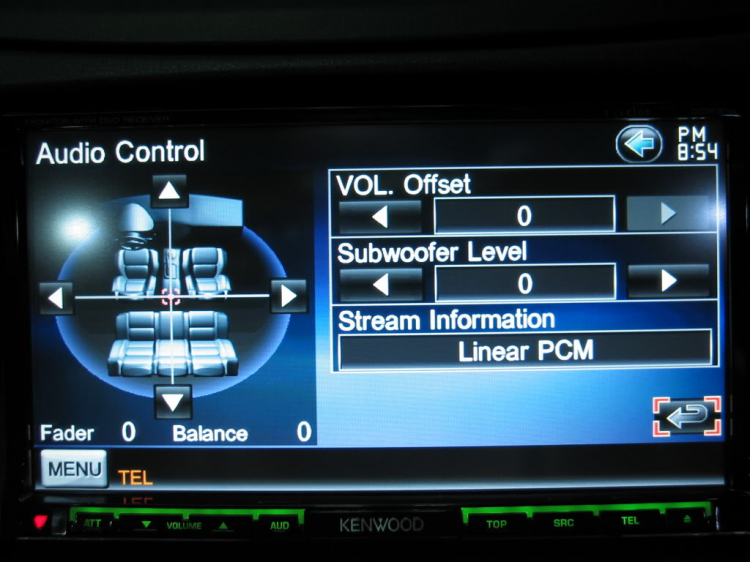

Audio Control:
Zone Control:

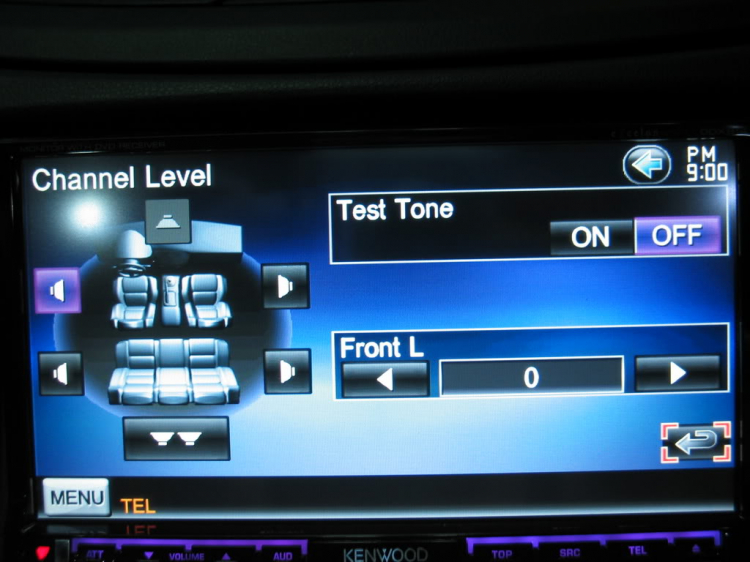

Chanel Level:

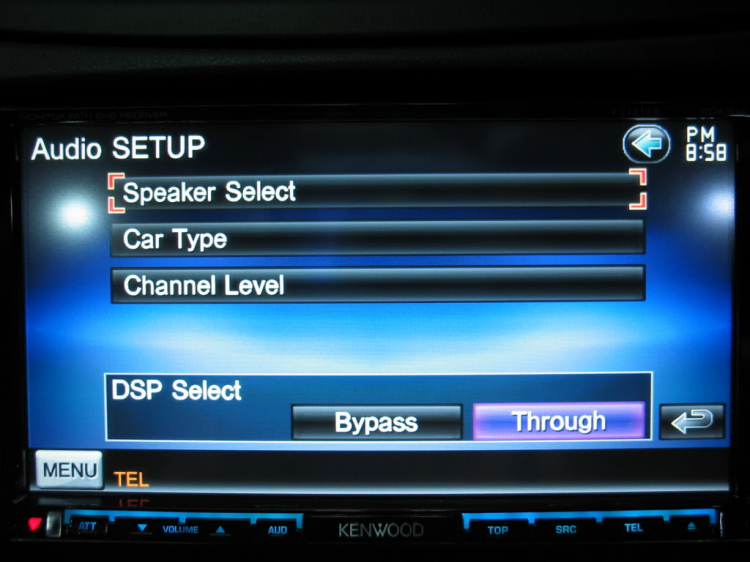

Audio Setup:

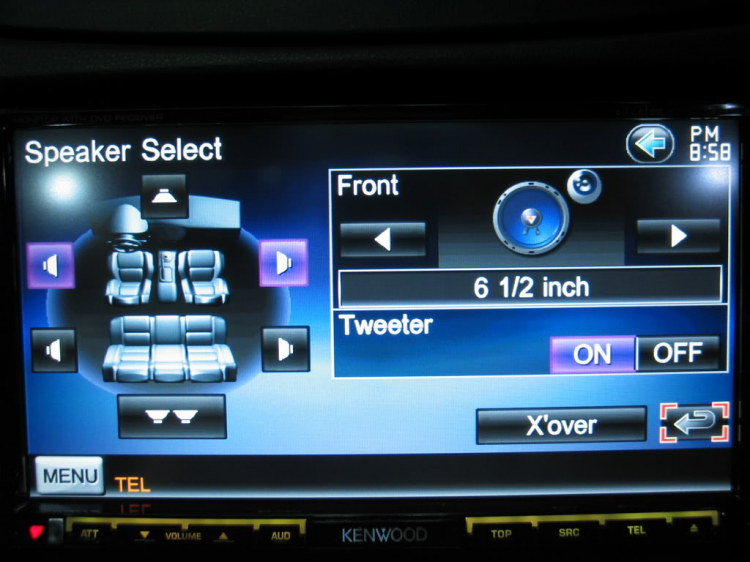

Chọn Kiểu Loa:

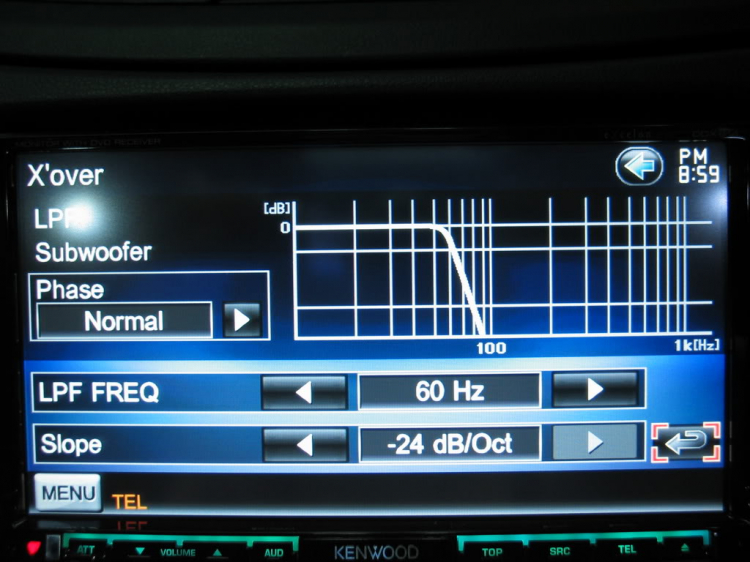

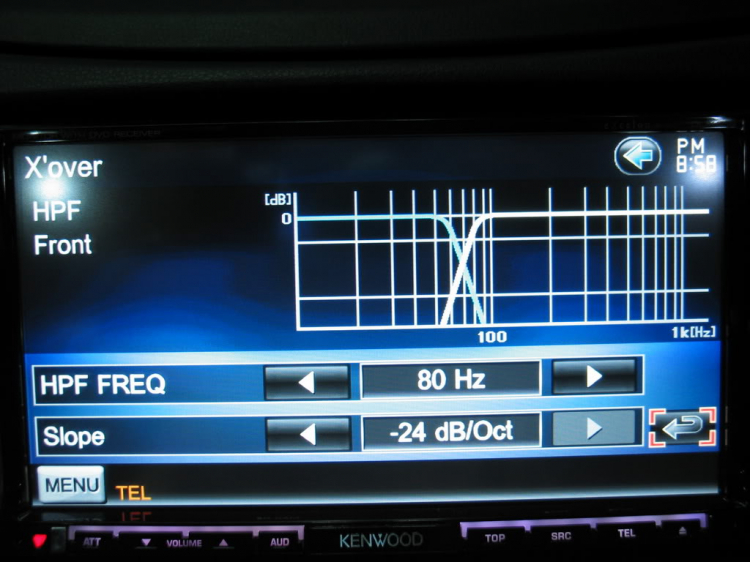

Chỉnh X'Over:

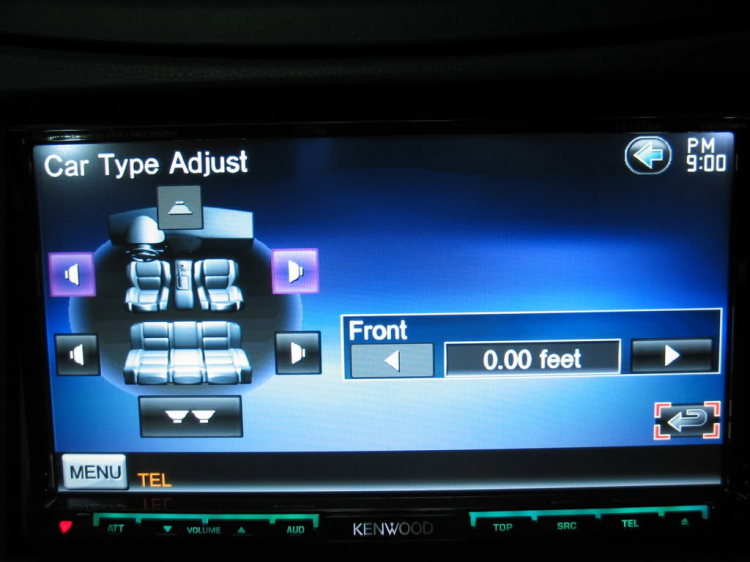

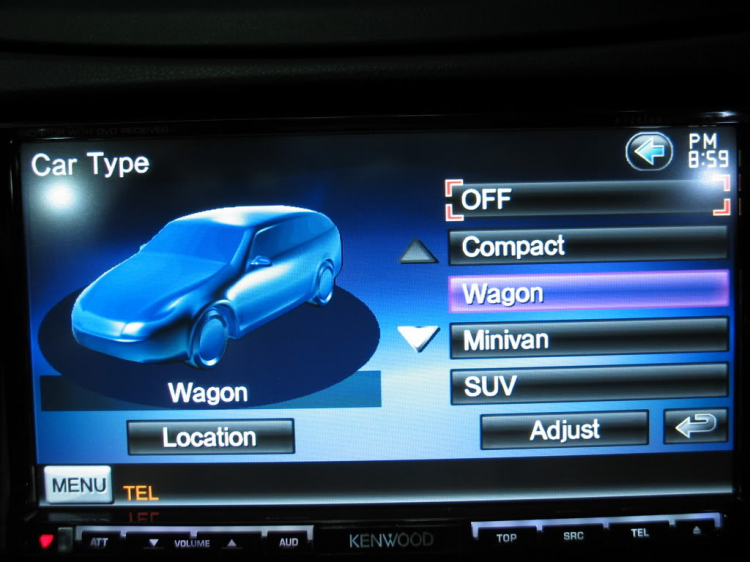

Chọn kiểu xe:

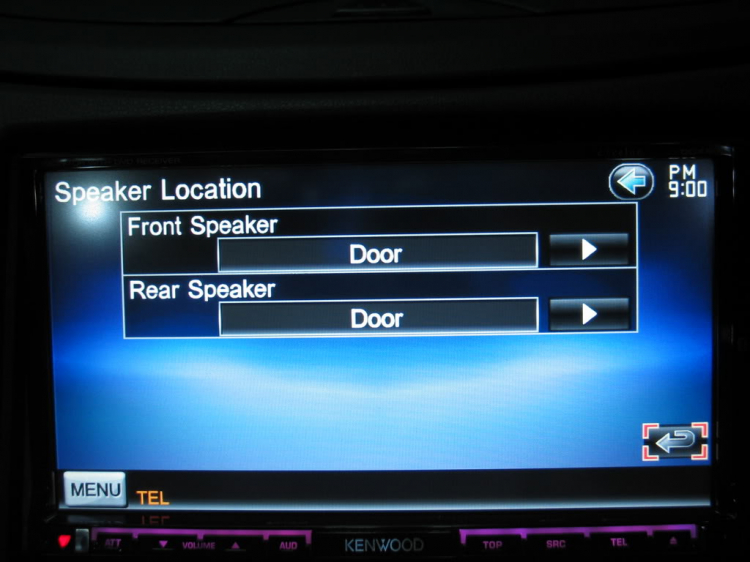

Chọn nơi để loa:

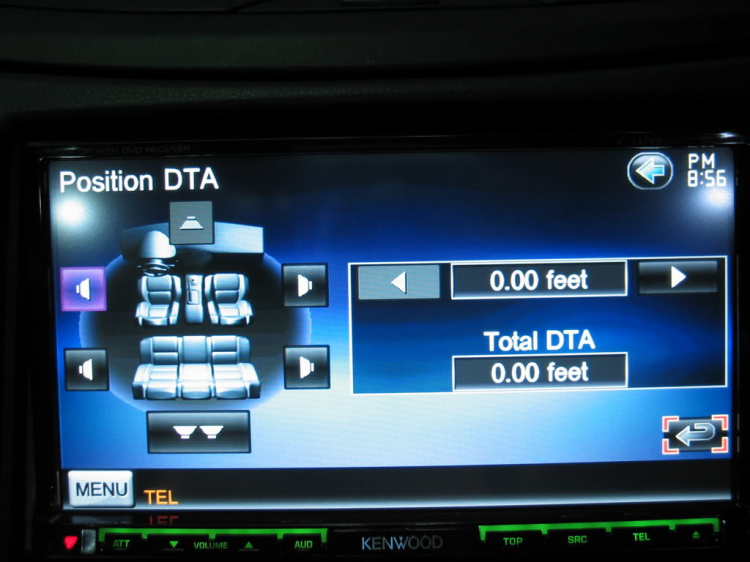

Position DTA:
Đo khoảng cách các loa:

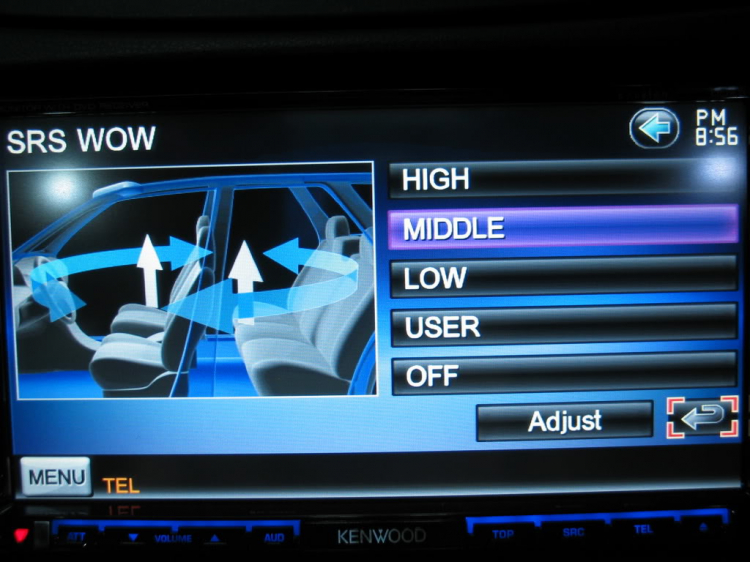

SRS WOW:

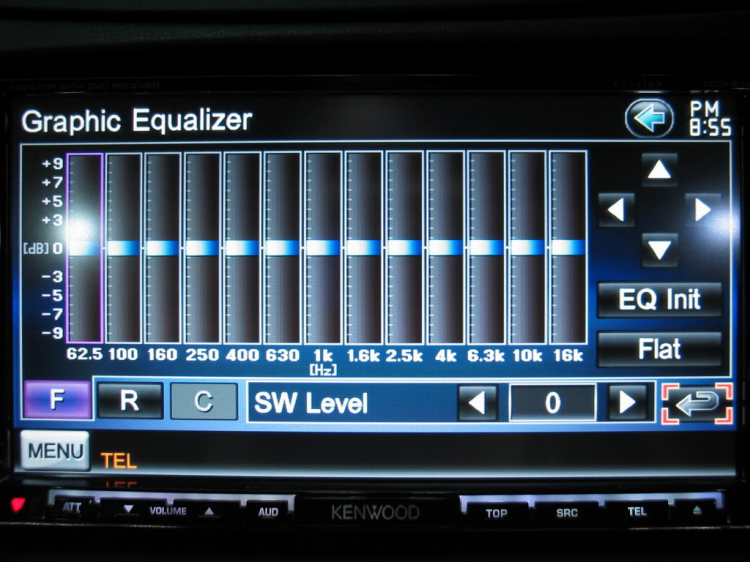

Graphic Equalizer:

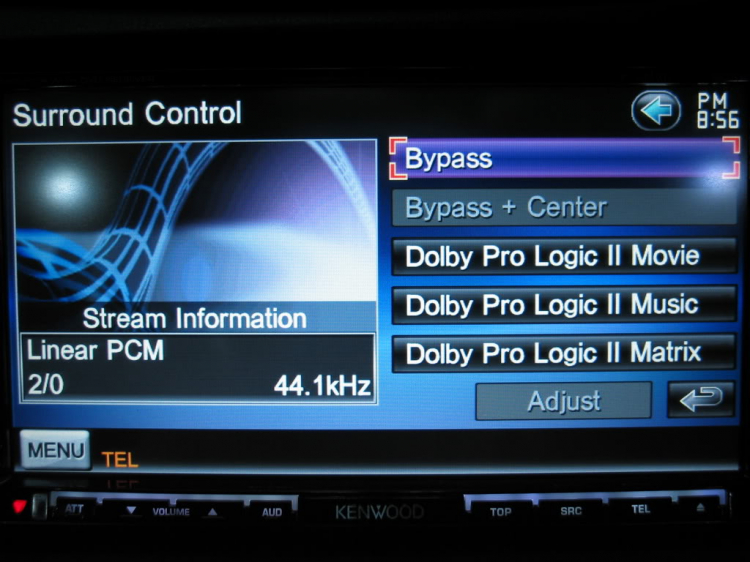

Surround Control:

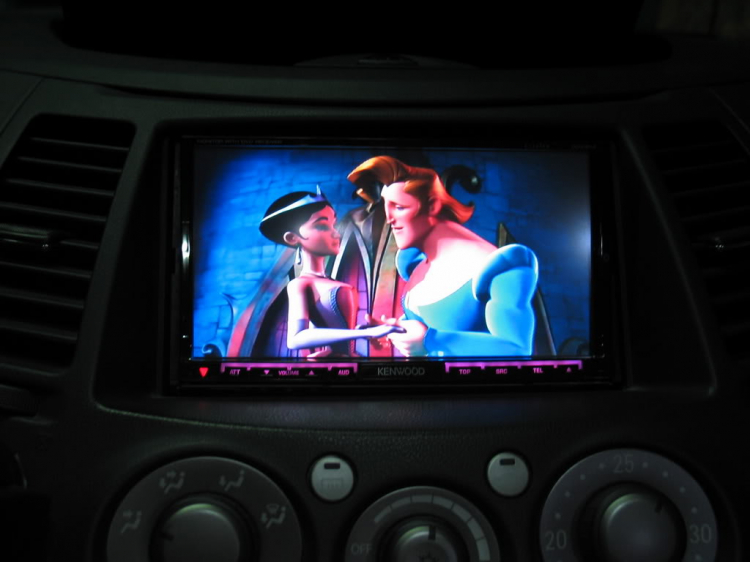

Show hàng:
Các tính năng nổi trội:
- Tự động điều chỉnh độ sáng tối màn hình (Reverse Tilt™ Mechanism)
- Giao diện điều khiển 3D chuyển động khá thú vị.
- Cảm ứng đa điểm. Chạm vào từng khu vực màn hình sẽ có chức năng hoạt động khác nhau.
- Tích hợp Bluetooth Handfree, Hỗ trợ A2DP truyền nhạc không dây.
- Tích hợp giải mã âm thanh 5.1;DTS; DSP With Digital Time Alignment & 13-Band EQ.
- 24-Bit Digital-To-Analog Converter
- Chơi phim nén DiVX
- Kết nối/Điều khiển iPhone;iPod, USB trực tiếp. Tìm kiếm danh bạ theo kí tự.
- Có thể thay đổi tùy chọn hình nền màn hình.
- Pre-out lên đến 5 volt - rất quan trọng khi xài Amplifier rời.
- Có thể nâng cấp Firmware.
Tham khảo thêm tại: http://www.kenwoodusa.com/Car_Entertainment/Mobile_Video_n_Navigation/Mobile_Video/DDX814
Đặc điểm chung:
General Features:
•2DIN 6.98” Wide VGA TFT Active Matrix Display with Reverse Tilt™ Mechanism
•Built-In Bluetooth by Parrot®
•Built-In 5.1 DSP With Digital Time Alignment & 13-Band EQ
•24-Bit Digital-To-Analog Converter
•DVD-Video / DiVX Playback
•iPhone/iPod Audio Video USB Direct Control With Alphabet Search
•Multi-Language GUI Menu
•Variable Color Illumination
•Selectable Wallpapers & Customizable Backgrounds
•Navigation Ready (Requires KNA-G510)
•SAT Ready (Requires CA-SR20V + Sirius SC-C1 Tuner or KCA-XM100V + XM Mini Tuner)
•HD Radio Ready
•Triple 5.0 Volt Pre-outs
•2 x USB Inputs, 2 x AV Inputs, 1 x Rear Camera Input, 1 x AV Output,
•2 x External Switches For Relay Control Outputs for garage doors, lighting, trunk, etc.
•Firmware upgradeable (go to www.kenwood.com/cs/ce for latest firmware versions)
Wide VGA Monitor
The DDX814 features a high-quality touchscreen Wide VGA monitor featuring over 1.152 million pixels. With outstanding brightness, response time and improved viewing angle, this monitor is sure to impress any viewer! Features include:
•Three Selectable Wallpapers
•Customizable Backgrounds (Up to three by USB upload)
•Multi-Language GUI Menu
Built-In Bluetooth - Powered by Parrot®
The built-in Bluetooth hands-free system enables easy, safe cellular phone communications from the car. Features include:
•High-quality noise cancelling microphone
•Register Up To 5 Bluetooth phones
•Holds up to 1000 phone numbers per registered phone
•Supports Auto Phonebook Download
•Supports A2DP Wireless Music Streaming
•Supports Voice Recognition Dialing
•Supports incoming/outgoing short-message service (SMS)
•Not all features work on all phones•Bluetooth firmware upgradeable (go to www.kenwood.com/cs/ce for latest firmware version)
iPhone/iPod Audio Video USB Direct Control
Kenwood Multimedia receivers connect seamlessly with most iPods and the new iPhone 3G featuring audio video playback via a KCA-iP301V iPod Audio Video USB Direct Cable. Features include:
•Alphabet Search
•Supports Album Art
•Supports Audio & Video Content Including Content Purchased From iTunes With DRM
•Supports Up To 12Mbps transfer speeds
•Powers and Charges Compatible iPhone/iPods
•Must update iPhone/iPod using iTunes for the latest Apple firmware
Reverse Tilt™ Mechanism
Depending on the vehicle, in-car monitors are installed in a variety of heights and angles, and this sometimes results in reduced visibility due to reflected glare from sunlight. Kenwood’s solution is the exclusive Reverse Tilt™ mechanism: in addition to the traditional tilt mechanism that allows the bottom of the monitor to be tilted forward over 5 positions, Reverse Tilt™ also allows the top of the monitor to tilt forward to eliminate reflected glare
Built-In Sirius Satellite Protocol
Kenwood Multimedia products offer more value by including a Sirius SSP interface. By simply adding a Kenwood CA-SR20V adapter cable, you can connect a Sirius SC-C1C tuner or a SC-VDOC1 car dock cradle for your portable Sirius tuner.
Thông số kỹ thuật:
# Of Pre-amplifier OutputsFront, Rear & Sub
2-Zone: Yes
AV IN 2 sets
AV OUT1 sets
Bluetooth Hands-Free Ready
Built-inDecoder AAC, WMA, MP3, WAV
Display Motorization Reverse-Tilt
Equalizer13-Band Parametric
External SwitchPower Handling
Graphic User Interface
Advanced GUI With User Selectable Interface
HD Radio Ready
Inputs2 x RCA & High-Level
iPod Video/Nano (5th/6th Gen) Optional KCA-iP300V
Maximum Power Supply Current 500mA
Multi-task Browser
Navigation Ready
Picture Size6.98" Wide
Rear Camera Input 1
Satellite Ready Sirius: CA-SR20V + Sirius SC-C1 Tuner or XM: KCA-XM100V + XM Mini Tuner
Reverse Camera Ready Optional CCD-2000
Security Code Function
Subwoofer Control
TV Tuner Ready KTC-V300N
User InterfaceTouchscreen Control
Wallpaper Customize Yes
WARRANTY2 - Year Parts & Labor
USB 2.0 Inputs 2
Digital-To-Analog Converter 24-BitDIVX
Dual Zone Source & Volume Control
High-Pass & Low-Pass Crossovers
Installer/User/Backup Memory of Audio Setup
iPod Video Direct
Number of Pixels 1,152,000Signal-to-Noise Ratio98dB
Steering Wheel Remote Control Input Requires Compatible 3rd-Party AccessorySystem Q/System Es+
Total Harmonic Distortion.01%
USB Direct Control 12Mbps Max Speed
USB Thumb Drives
Wireless RemoteYes
3 Skin Selection
File System FAT 16/32Frequency Response20Hz - 96kHz
Preout Level / Impedance5V @ 80Ω
Vài hình ảnh:
Có 3 Theme tùy chọn:
Chọn nguồn phát:
Screen Adjust: Có thể chỉnh DIM tự động phù hợp với ánh sáng trong xe
Bluetooth:
Audio Control:
Zone Control:
Chanel Level:
Audio Setup:
Chọn Kiểu Loa:
Chỉnh X'Over:
Chọn kiểu xe:
Chọn nơi để loa:
Position DTA:
Đo khoảng cách các loa:
SRS WOW:
Graphic Equalizer:
Surround Control:
Show hàng:
